ENGINETICS BRAKES & PARTS

Lt. Wt. Brakes Master Cylinders Master Cylinder Parts Caliper Parts Brake Pads

Rotors & Hubs Fittings Brake Line Brake Fluid 6200 Caliper Parts FWB Parts

Light Weight Brake System for Briggs Classes Part # Description List Sell ENG 1.25LTWT 1¼" Light Weight High Performance System 320.00 224.00 ENG 1125 Billet Light Weight Caliper 169.80 118.86 ENG 625 High Performance Billet Master Cylinder Has 5/8" Bore 119.80 83.86

Enginetics Master Cylinders (7/8" Bore) Part # Description List Sell ENG 600 Master Cylinder Assembly 60.00 45.00 ENG 4000 Handle Bar Master Cylinder Assembly 64.00 51.20

Master Cylinder Parts Master Cylinder #600 Instruction Sheet Master Cylinder #4000 Instruction Sheet

Part # Description List Sell ENG 904 Master Cylinder Rebuild Kit 14.00 11.20 ENG 908 Master Cylinder Dust Shield Kit 6.00 5.10 ENG 602 Master Cylinder Cap 10.00 8.00 ENG 603 Master Cylinder Cap Plug 0.50 0.50 ENG 604 Master Cylinder Cap Screw 0.30 0.30 ENG 105 Master Cylinder Gasket 0.60 0.60 ENG 106 Master Cylinder Pivot Pin 0.40 0.40 ENG 611 Master Cylinder Spring 1.00 1.00 ENG 613 Master Cylinder O-Ring 0.40 0.40 ENG 615 Master Cylinder Lever Arm 7.50 6.00 ENG 125 Master Cylinder Cup Seal 1.00 1.00

Rear Caliper #700 Instruction Sheet Rear Caliper #700B Instruction Sheet Rear Caliper #1700 Instruction Sheet

Enginetics Standard Caliper Parts For #700, 700B, 1700 & 2700 Calipers Part # Description Caliper List Sell   ENG 905 ENG 907 Caliper Rebuild Kit: Fits 700 & 700B Calipers Fits 1700 & 2700 Calipers   700/ 700B 1700/2700   15.00 15.00   12.00 12.00 ENG 906 Caliper Spring Kit 700B/1700 25.00 20.00 ENG 131 Spacer Kit 1700 19.50 16.58 ENG 205 Caliper O-Ring, Piston ALL 0.40 0.40 ENG 206 Caliper Spring, Pad Return 700 1.00 1.00 ENG 707 Retainers, Pad 700 1.80 1.53 ENG 708 Shims 700/ 700B 1.00 1.00 ENG 710 Safety Plate, Aluminum ALL 7.50 6.00 ENG 711 Safety Plate, Steel ALL 6.00 4.80 ENG 607 Bleed Screw ALL 1.50 1.28 ENG 1703 Transfer O-Ring 1700 0.40 0.40 ENG 1706 Spring .335" 700B/1700 1.50 1.50 ENG 1707 Sleeve with Ring 700B/1700 3.00 3.00 ENG 1708 Pad Bolts 700B/1700 0.80 0.80 ENG 1709 Caliper Assembly Bolts 1700 0.40 0.40 ENG 117 Pipe Plug 1700 1.00 1.00

Part # Description Caliper List Sell ENG 303 Brake Pad for Std. Caliper, Black (Hard), Each "Standard" 14.00 10.50 ENG 305 Brake Pad for Std. Caliper, Red (Soft), Each "Standard" 14.00 10.50 ENG 353 Scalloped Pad, Black (Hard), Each 765 30.00 27.00 ENG 352 Scalloped Pad, Grey (Medium), Each 765 30.00 27.00 ENG 355 Scalloped Pad, Red (Soft), Each 765 30.00 27.00 ENG 1130 Square Brake Pad, Black, Each 1125 14.00 10.50 ENG 1303 Round Brake Pad, Black, Each 2000 28.00 23.80 ENG 6303 Tapered Pad, Black Hard, Pair 6200 24.00 20.40 ENG 6306 Tapered Pad, Yellow (Aluminum Rotor), Pair 6200 30.00 27.00

See also MCP Rotors.

Part # Description List Sell   ENG 301 ENG 909 ENG 909T Enginetics Brake Rotors: Steel 7-1/8" x 3/16" Drilled Steel 7-1/8" x 3/16" Drilled Steel 7-1/8" x 1/8"   28.00 45.00 45.00   28.00 36.00 36.00 ENG 911 Hub, 1¼" Light Weight 32.00 25.60 ENG 804 Assembly Bolt (Rotor to Hub) 1.20 1.20 ENG 805 Assembly Nut (Rotor to Hub) 0.40 0.40

6200 Instructions Pg1 6200 Instructions Pg2

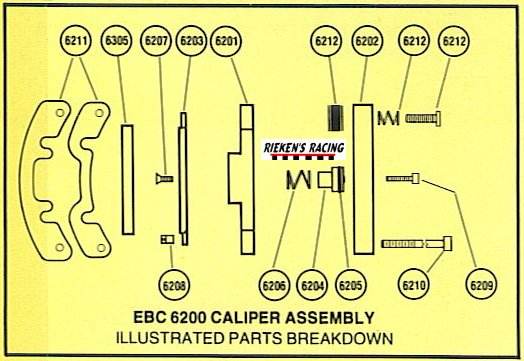

6200 Caliper Parts ("The Big Yellow One") Part # Description List Sell ENG 6205 O-Ring, Caliper 0.80 0.80 ENG 6208 Pad Retainer 2.50 2.13 ENG 6209 Bolt, Caliper Assembly 0.30 0.30 ENG 6210 Bolt, Caliper Assembly 0.40 0.40 ENG 6211 Shim Set 4.00 3.40 ENG 6211.5 Shim Pack, For Big Disc 36.00 30.60 ENG 6212 Pad Adjusters 8.00 6.80 ENG 6220 Rebuild Kit, Caliper 50.00 42.50   Tapered Brake Pads

Enginetics Front Wheel Brake Parts FWB = Front Wheel Brakes EFWB = External Front Wheel Brakes IFWB = Internal Front Wheel Brakes

EFWB Instructions IFWB Instructions Pg1 IFWB Instructions Pg2

Part # Description System List Sell ENG 920 Spring Rebuild Kit EFWB 12.50 10.00 ENG 755 Sleeve EFWB 3.00 2.55 ENG 756 Retainer EFWB 0.50 0.50 ENG 1102 Seal IFWB 16.00 13.60 ENG 1103 Bracket IFWB   2.00 ENG 1105 Sleeve IFWB 1.00 1.00 ENG 1109 FWB Shim Pack Any 30.00 24.00 ENG 1109.1 Shim (.005") FWB Any 1.20 1.20 ENG 1109.2 Shim (.030") FWB Any 1.20 1.20 ENG 1120 Dust Shield, IFWB IFWB 12.00 10.20 ENG 1121 Spring Rebuild Kit IFWB 12.00 10.20 ENG 1220 Bias Bar Assembly Any 60.00 45.00

  Please email your questions or comments.
