STEERING
COMPONENTS

Steering Wheels
Steering Wheel Hubs
Steering Wheel Hardware
Steering Shafts
Tie Rods

Toe Lock Kits
Heim Joints / Rod Ends
Spindles--Racing Kart
Spindles--Fun Kart

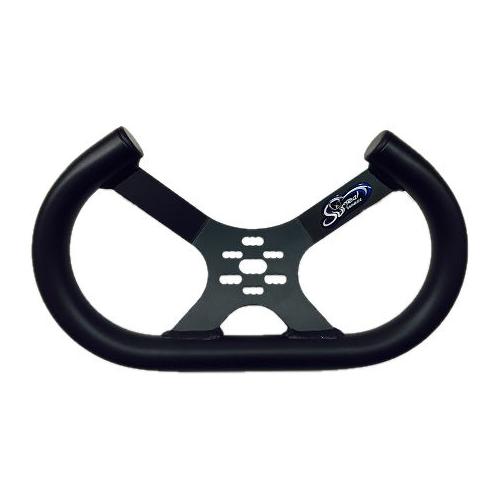

Steering Wheels

Part #	Description	List	Sell
AZ 1801 AZ 1805 AZ 2294 AZ 1877	Azusa Neoprene Steering Wheels: Azusa Neoprene 10" Steering Wheel Azusa Neoprene 12" Steering Wheel Azusa Aluminum Butterfly Steering Wheel Azusa Chromed Steering Wheel Cap Assembly	24.95 25.95 54.95 7.75	21.21 19.46 46.71 6.59
	Aluminum 13" Open Top Steering Wheel Black Rhino steering wheels.	80.00	60.00
	Aluminum Steering Wheels: 12" Steering Wheel 14" Steering Wheel Weighs about 1 pound	51.65 59.35	41.32 47.48
M3BWheel	MyChron 3 Basic Steering Wheel For use with Mychron 3 Basic Gauge Only 320mm. Diameter Click here for more information.	129.00	116.10

Steering Wheel Hubs & Hardware

Part #	Description	List	Sell
LA 56602	5/8" Quick Release Steering Hub From Longacre This must be welded on to a 5/8" steering shaft	29.95	27.89
AZ 1874 AZ 1873	Steering Hub Kit Steering Hub Kit with Pitman Arms	10.50 12.65	8.93 10.75
AZ 8134	Steering Hub (fits 5/8" splined shaft)	5.30	4.51
WK254BK	Steering Hub 100cc, Wild Kart, Aluminum Fits 20MM steering shaft, black anodized	15.02	12.77
K153BBK	Steering Hub, Nylon Fits 3/4" or 19MM steering shaft	4.40	3.74
AZ 8527	Slotted Hex Nut (1/4-28)	0.30	0.26
AZ 8412	Bolt with Hole (1/4-28 x 3/4")	0.59	0.50
	Outerwear Scrub Bag Steering wheel cover.	9.99	7.49

Steering Shafts, Toe Locks & Hardware

Part #

Description

List

Sell

K149

Steering Column, M8 x 490MM long

25.08

21.32

RKD259

Steering Column, M10 x 490MM long

25.10

21.34

BB 013-1003
BB 013-1008

Buller Steering Shafts:
3/4" Tubular Steering Shaft
5/8" Solid Steering Shaft

24.00
31.00

Coyote Standard 5/8" Solid Steering Shaft

Coyote Ackerman 5/8" Solid Steering Shaft

47.36

49.08

40.26

41.72

MP 094106
MP 094110
MP 094114

Margay 5/8" Solid Steering Shafts:
21.5" Shaft
23.5" Shaft
24.5" Shaft

49.95
49.95
51.95

42.46
42.46
44.16

AZ 1868-22
AZ 1868-24
AZ 1868-25
AZ 1868-28
AZ 1868-34

Azusa Steering Shaft Kits:
Kit with 22" Shaft -- Not Welded
Kit with 24" Shaft -- Not Welded
Kit with 25" Shaft -- Not Welded
Kit with 28" Shaft -- Not Welded
Kit with 34" Shaft -- Not Welded
All Azusa steering shafts are available.

21.95
21.95
22.95
22.95
24.50

18.66
18.66
19.51
19.51
20.83

AZ 8528

Slotted Hex Nut 1/2-20 for steering wheel hub

0.45

0.38

AZ 8322

Snap Ring for steering wheel hub

0.10

0.09

AZ 8554

Collar with Set Screw (5/8" ID)

1.00

0.85

MP 094240

Nylon Steering Bushing (5/8" ID)

3.50

2.98

K010C

Nylon Steering Bushing (3/4" or 19MM ID)

3.30

2.81

K010A

Nylon Steering Bushing (20MM ID)

3.30

2.81

KM 301

Aluminum Steering Block 5/8" ID

6.25

5.00

WMS TL58
BB 013-500
RR TL34
RR TL20

Steering Lock Kits (Toe Lock Kits):
WMS Toe Lock Kit for 5/8" Steering Shaft
Buller Toe Lock Kit for 5/8" Steering Shaft
Steering Lock Kit for 3/4" or 19MM Steering Shaft
Steering Lock Kit for 20MM Steering Shaft

22.95
31.50
25.00
25.00

Tie Rods

Part #	Description	List	Sell
	Coyote Tubular Tie Rod x 3/8" aluminum <--See drop down for rod lengths.	12.28	10.44
	Margay Tubular Tie Rod x 5/16" aluminum Black Anodized	14.95	12.71
	Buller Tubular Tie Rod x 5/16" aluminum	8.95	8.95
	Tubular Tie Rod x 5/16" aluminum	7.85	7.85
	Tubular Tie Rod x 3/8" aluminum	7.85	7.85
#TR-220	Tubular Tie Rod x 220MM x 8MM aluminum Gold Anodized -- fits Top Kart Kid Kart	10.12	8.60
	Tubular Tie Rod x 8MM aluminum	8.48	8.48
BB 019-1925 BB 019-2087 BB 019-2125	Buller Drag Links: 19-1/4" long 20-7/8" long 21-1/4" long	18.00 18.00 18.00	18.00 18.00 18.00
	Azusa 5/16" Steel Tie Rod Kit Each kit includes: 1 rod, RH & LH ends & jamnuts (Chrome plated)	25.50	22.95
BKS 03-011	Tie Rod Steel 3/8" x 12" (male type - solid)	4.00	4.00

Heim Ends (Tie Rod End Bearings)

Part #	Description	List	Sell
RR 8247 RR 8246 RR 8249 RR 8248 KMCM8 KMCM8L	Male Tie Rod End (Heim Joint): 3/8-24 LH Male Rod End 3/8-24 RH Male Rod End 5/16-24 LH Male Rod End 5/16-24 RH Male Rod End 8MM RH Male Rod End 8MM LH Male Rod End	5.95 5.95 5.95 5.95 7.95 7.95	5.06 5.06 5.06 5.06 6.76 6.76
BB NJM5 BB NJML5	Buller 5/16-24 Rod End w/insert: RH 5/16" End - includes nut LH 5/1"6 End - includes nut	5.80 5.80	5.80 5.80
AZ 8221 AZ 8221L AZ 8244 AZ 8244L	Deluxe Female Tie Rod Ends: 5/16-24 RH Thread 5/16-24 LH Thread 3/8-24 RH Thread 3/8-24 LH Thread	5.95 5.95 5.95 5.95	5.06 5.06 5.06 5.06
AZ 8512 AZ 8530 AZ 8523 AZ 8529 AZ 8540 AZ 8541	Jam Nut: 3/8-24 (RH threads) 3/8-24 (LH threads) 5/16-24 (RH threads) 5/16-24 (LH threads) 8MM (RH threads) 8MM (LH threads)	0.14 0.40 0.10 0.30 0.35 0.88	0.14 0.34 0.10 0.26 0.30 0.75

Racing Kart Spindles & Related Parts

Part #	Description	List	Sell
CP 101 CP 101A CP 101B	Coyote Spindle Kingpin Bolt & Nut: Fits 3.5" x 3/8"-16 Fits 3.75" x 3/8"-16 -- for adjustable yoke. Fits 4" x 3/8"-16 -- for camber yoke.	3.89 4.55 4.55	3.31 3.87 3.87
MP 101	Margay Spindle Kingpin Bolt & Nut Sold Individually	8.33	7.08
CP 102 CP 102T	Spindle Height Washer, 3/8" ID .060" thick .030" thick	0.29 0.29	0.25 0.25
CP 103 CP 103-10	3/8" ID Spindle Kingpin Bearing 3/8" ID Spindle Kingpin Bearings -- 10 PACK	3.35 33.50	2.00 18.00

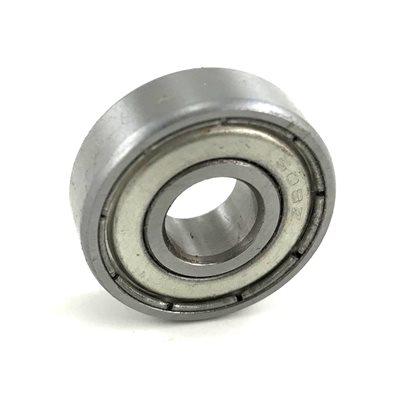

KM306	8MM Spindle Kingpin Bearing -- Metric	1.95	1.95
	Buller '06 & '05 Velocity Spindle -- 5/8" Buller '04 & '03 Velocity Spindle -- 5/8" All other Buller front end parts are also available.	49.95 49.95	49.95 49.95
BB 1081-58 BB 1088-58	Buller '02 - '04 Demon LT LH Spindle -- 5/8" Buller '02 - '04 Demon LT RH Spindle -- 5/8" All other Buller front end parts are also available.	39.95 49.95	39.95 49.95
BB SPIN58	Buller Aero LT Spindle 5/8"	39.95	39.95
	Buller Aerostarr Spindle -- 5/8"	39.95	39.95
	Coyote Bullet 15° Spindle <--See drop down for options.	69.99	59.49
	Coyote Oval Rocket Spindle <--See drop down for options.	69.99	59.49
	Coyote Onyx Spindle <--See drop down for options.	72.30	61.46
	Coyote Wide Track Standard Spindle <--See drop down for options.	69.99	59.49
	Coyote Thrasher or Interceptor Spindle <--See drop down for options.	69.99	59.49
	Coyote Assassin Spindle <--See drop down for options.	69.99	59.49
	Coyote S-Arm Spindle -- Fit all 12° karts. <--See drop down for options.	69.99	59.49
	Margay Spindle <--See drop down for options.	42.00	35.70
	Margay Brava Spindle	109.00	92.65
	Margay Brava BILLET Spindle	119.00	101.15
TP1000-114-01*	Top Kart Spindles *Please specify (RH/LH) & (1 Dot or 2 Dot)	94.30	89.59
	Wild Kart 100cc Spindles Fits most European chassis	67.38	57.27
SK660-54 CP 113A SK660-55 MP 094596	Front Hub Spacer, 5/8" ID: 1/4" wide, aluminum 1/4" wide, steel 1/2" wide, aluminum 3/4" wide, aluminum	1.12 2.26 1.12 2.20	0.70 1.92 0.70 1.87
WK212 WK213	Front Hub Spacer, 17MM ID Aluminum Wild Kart 17MM ID x 5MM wide -- black anodized Wild Kart 17MM ID x 10MM wide -- black anodized	1.58 2.18	1.34 1.85
K021AL-S K022AL-S	Front Hub Spacer, 17MM ID Aluminum 17MM ID x 5MM wide 17MM ID x 10MM wide	1.58 2.18	1.34 1.85
KM988	Slotted Nut, Spindle (5/8-18) -- THIN	1.38	1.38
AZ 8521	Slotted Nut, Spindle (5/8-18)	0.75	0.64
MP 063470	Margay Brava Castle Nut, Spindle - M16	3.38	2.70
TP1000-111	Top Kart Spindle Nut - M14	1.57	1.57
CP112YCTP*	Coyote Camber Top Plates Includes 2 pills of the same degree per pack. Available: 0°,.25°,.5°,.75°, 1°,1.25°,1.5°,1.75°, 2° * Please specify # of degrees when ordering.	11.55	9.24
MP 094590 MP 094591 MP 094593 MP 094588 MP 094592	Margay Pills & Parts: Margay Spindle Pill -- STANDARD (Centered) - each Margay Spindle Pill -- OFFSET - each Margay Spindle Pill -- OFFSET PRO - each Margay Spindle Pill Kit -- OFFSET Margay Dowell Pin	5.00 7.25 12.65 25.25 0.50	4.25 6.16 10.75 21.46 0.43

Fun Kart Spindles & Related Parts by Azusa Engineering

Part#	Description	List	Sell
AZ 8181 AZ 8446 AZ 8514	Spindle Bracket For 1/2" Kingpin: Weld on Spindle Bracket Kingpin Bolt 1/2-20 x 3-3/4" Locknut 1/2-20	2.10 1.15 0.14	1.79 0.98 0.12
	Spindle Only, 3¾" Long x 5/8" Axle	10.95	9.31
	Spindle Only, 4½" Long x 5/8" Axle	11.30	9.61
	Spindle Only, 6.0" Long x 5/8" Axle	11.95	10.16
	Spindle Kit, 3¾" Long x 5/8" Axle	16.95	14.41
	Spindle Kit, 4½" Long x 5/8" Axle	16.95	14.41
	Spindle Kit, 6.0" Long x 5/8" Axle	17.95	15.26
	Spindle Only, 3¾" Long x 3/4" Axle	12.95	11.01
	Spindle Only, 4½" Long x 3/4" Axle	12.50	10.63
	Spindle Only, 6.0" Long x 3/4" Axle	13.75	11.69
	Spindle Kit, 3¾" Long x 3/4" Axle	18.25	15.51
	Spindle Kit, 4½" Long x 3/4" Axle	18.50	15.73
	Spindle Kit, 6.0" Long x 3/4" Axle	19.25	16.36
AZ 8171	Spindle Bracket, (Weld-on yolk) Fits 5/8" kingpin	2.75	2.34
AZ 8447	Kingpin Bolt, 5/8-18 x 3.25"	1.65	1.40
AZ 8515	Kingpin or Spindle Nut, 5/8-18 Nyloc	0.30	0.26
AZ 8215	Nyliner Bushings for spindle 2 Required	0.56	0.48
AZ 8328	Nylon Spacer, 5/8" ID	0.20	0.17
AZ 8329	Nylon Spacer, 3/4" ID	0.32	0.27
AZ 8516	Spindle Nut, 3/4-16 Nyloc	0.45	0.38

Need helping finding something? Email us. We will be glad to help.
