REF
1 - Inner Race Retaining Ring
 |
Part# 'SMC 4013'
REF #1
Retaining Ring
Inner Race
Sell $1.00 |
|
REF

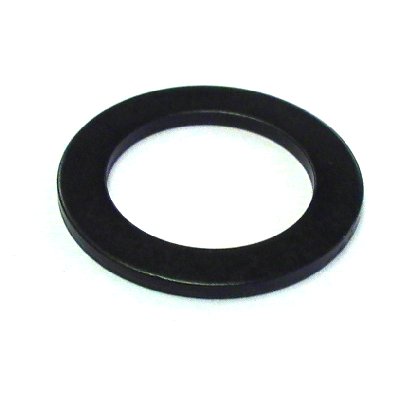

2 - Outer Washer, Large
 |
Part# 'SMC 4010'
REF #2
Outer Washer 0.080"
Fits 14T & up #35
Fits 17T & up #219
Sell $1.25 |
|
REF
2 - Outer Washer, 12T
 |
Part# 'SMC 4049'
REF #2
Outer Washer
Fits 12T #35
Sell $1.25 |
|
REF

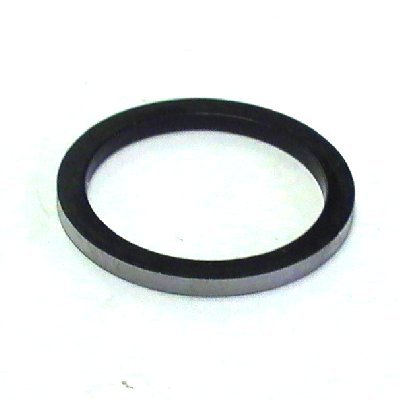

2 - Outer Washer, Small
 |
Part# 'SMC 4023'
REF #2
Outer Washer
Fits 13T #35
Fits 16T #219
Sell $1.25 |
|
REF
2 - Outer Washer, 11T
 |
Part# 'SMC 4027'
REF #2
Outer Washer
Fits 11T #35 Old Style
Sell $2.50 |
|
REF
2 - Inner Washer
|
Part# 'SMC 4010'
REF #2
Inner Washer 0.080"
Fits all but 11T #35
Sell $1.25 |
|
REF
2 - Inner Washer, 11T
 |
Part# 'SMC 4038'
REF #2
Inner Washer
Fits 11T #35 only
Sell $5.00 |
|
REF
3 - Inner Race
 |
Part# 'SMC 4011'
REF #3
Inner Race, 1.187"
Fits all but 11T #35
Sell $9.00 |
|
REF
3 - Inner Race / Bushing 11T
 |
Part# 'SMC 4039'
REF #3
Inner Race / Bushing
Fits 11T #35
Sell $7.00 |
|
REF
4 - Needle Roller Bearing
 |
Part# 'SMC 4012'
REF #4
Needle Roller Bearing
Sell $7.50 |
|
REF
4 - Plain Bearing
 |
Part# 'SMC 4020'
REF #4
Plain Bearing
Sell $3.50 |
|
REF 5 - Sprocket
|
REF
6 - 1D Drum
 |
Part# 'SMC 4007'
REF #6
Drum
Fits 1 Disc Clutch
Sell $24.95 |
|
REF
6 - 2D Drum
 |
Part# 'SMC 4033'
REF #6
Drum
Fits 2 Disc Clutch
Sell $24.95 |
|
REF

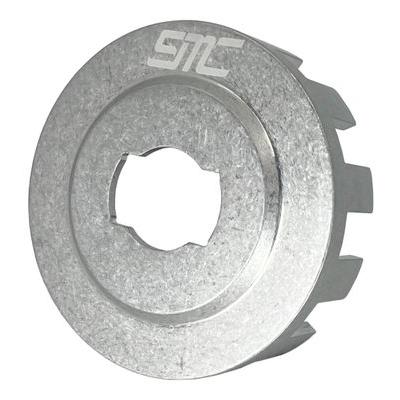

6 - 3D Drum
 |
Part# 'SMC 4813'
REF #6
Drum
Fits 3 Disc Clutch
Sell $28.95 |
|
REF
7 - Retaining Ring for Sprocket
 |
Part# 'SMC 4037'
REF #7
Retaining Ring for Sprocket
(Max 11,000rpm)
Sell $1.50 |
|
REF

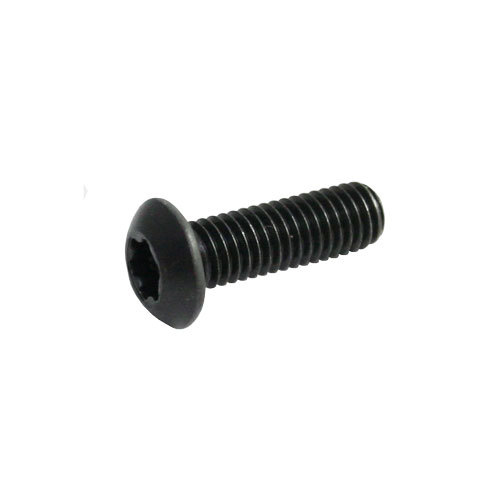

8 - Button Head Cap Screw
 |
Part# 'SMC 4006'
REF #8
Screw
Sell $0.25 |
|
REF

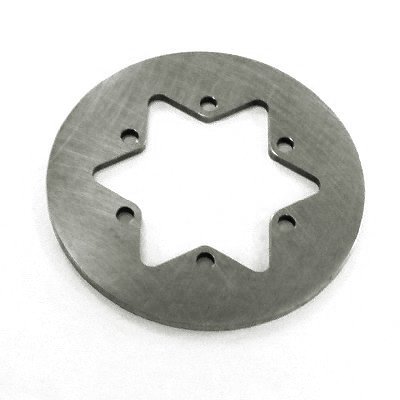

9 - Drive Plate
 |
Part# 'SMC 4003'
REF #9
Drive Plate
Sell $16.00 |
|
REF
10 - Clutch Disc
 |
Part# 'SMC 4002'
REF #10
Clutch Disc, 4 Tab
Sell $24.50 |
|
REF
11 - 1D Drive Hub
 |
Part# 'SMC 4001'
REF #11
Drive Hub
Fits 1 Disc Clutch
Sell $95.00 |
|
REF
11 - 2D Drive Hub
 |
Part# 'SMC 4031'
REF #11
Drive Hub
Fits 2 Disc Clutch
Sell $98.00 |
|
REF
12 - Vortex Spring .083" wire
 |
Part# 'SMC 4004'
REF #12
Vortex Spring
0.083" Wire
Sell $3.00 |
|
REF

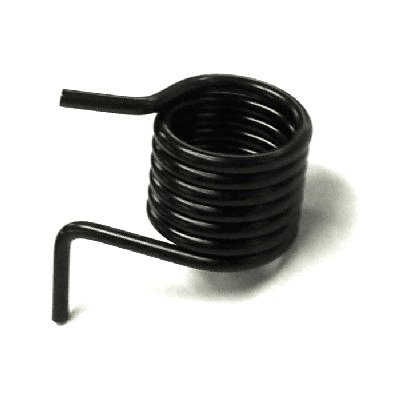

12 - Vortex Spring .088" wire
 |
Part# 'SMC 4059'
REF #12
Vortex Spring
0.088" Wire, Animal
Sell $3.00 |
|
REF

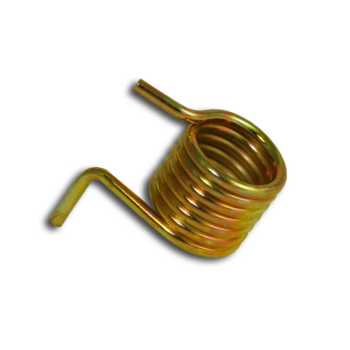

12 - Vortex Spring .093" wire
 |
Part# 'SMC 4068'
REF #12
Vortex Spring
0.093" Wire Optional
Sell $3.00 |
|
REF
13 - Weight, Brass
 |
Part# 'SMC 4105'
REF #13
Brass Weight
New Style
Sell $12.00 |
|
REF
13 - Weight, Steel
 |
Part# 'SMC 4005'
REF #12
Steel Weight
Old Style
Sell $7.50 |
|
REF
14 - Key for 1D Clutch
 |
Part# 'SMC 4014'
REF #14
Key 0.625"
Fits 1 Disc Clutch
Sell $0.50 |
|
REF
14 - Key for 2D Clutch
|
Part# 'SMC 4036'
REF #14
Key 0.870"
Fits 2 Disc Clutch
Sell $0.50 |
|
REF
15 - Spacer for 1D Clutch
 |
Part# 'SMC 4015'
REF #15
Spacer 0.500"
Fits 1 Disc Clutch
Sell $4.00 |
|
REF
15 - Spacer for 2D Clutch
 |
Part# 'SMC 4032'
REF #15
Spacer 0.250"
Fits 2 Disc Clutch
Sell $4.00 |
|
REF
16 - Crankshaft Washer
 |
Part# 'SMC 4016'
REF #16
Washer, Crankshaft
Sell $0.60 |
|
REF
17 - Lock Washer
 |
Part# 'SMC 4025'
REF #17
Lock Washer
Sell $0.25 |
|
REF
18 - Hex Head Cap Screw
 |
Part# 'SMC 4017'
REF #18
Hex Head Cap Screw
Sell $0.75 |
|
Vortex
Spring Tool
 |
Part# 'SMC 4018'
Spring Tool
Sell $15.00 |
|
Inner
Race Kit for 1D Clutch
 |
Part# 'SMC 4024'
Inner Race Kit
For 1 Disc Clutch
Sell $17.00 |
|
Inner
Race Kit for 2D Clutch
 |
Part# 'SMC 4035'
Inner Race Kit
For 2 Disc Clutch
Sell $17.00 |
|
Inner
Race Kit for 3D Clutch
 |
Part# 'SMC 4051'
Inner Race Kit
For 3 Disc Clutch
Sell $15.00 |
|

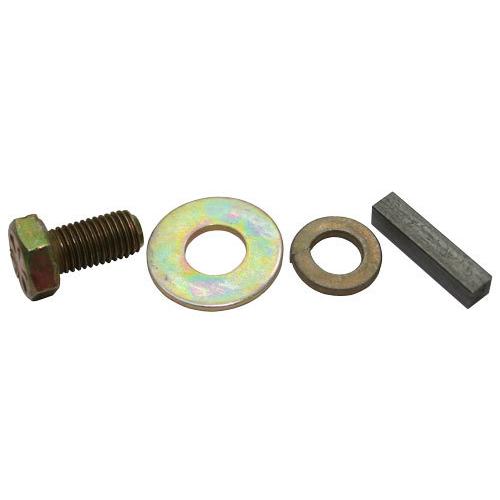

Hardware
Pack
 |
Part# 'SMC 4047'
Hardware Pack
Bolt, Washers & Key
Sell $2.75 |
|
