TILLOTSON CARBURETORS

Part# 'HL-166B'
Tillotson Carb
Venturi = 0.625"
Throttle Bore = 0.810"
Fuel = Gas
Application = Comer K80
List $98.47
Sell $88.62

Tillotson HL-304WX Carb

Part# 'HL-304WX'
Tillotson Carb
Venturi = 0.875"
Throttle Bore = 1.000"
Application = Builder's Carb
List $106.50
Sell $95.85

Tillotson HL-304WX Carb

Part# 'HL-304WX-G'
Tillotson Carb
Venturi = 0.875"
Throttle Bore = 1.000"
Application = OHV
Fuel = Gas
List $116.60
Sell $110.77

Tillotson HL-304WX Carb

Part# 'HL-304WX-A'
Tillotson Carb
Venturi = 0.875"
Throttle Bore = 1.000"
Application = Animal Modified
Fuel = Alky
List $116.60
Sell $110.77

Tillotson HL-334WX Carb

Part# 'HL-334WX'
Tillotson Carb
Venturi = 0.790"
Throttle Bore = 1.000"
Application = Builder's Carb
List $109.70
Sell $98.73

Tillotson HL-334WX Carb

Part# 'HL-334WX-G'
Tillotson Carb
Venturi = 0.790"
Throttle Bore = 1.000"
Application = OHV
Fuel = Gas
List $116.60
Sell $110.77

Tillotson HL-334WX Carb

Part# 'HL-334WX-A'
Tillotson Carb
Venturi = 0.790"
Throttle Bore = 1.000"
Application = OHV
Fuel = Alky
List $116.60
Sell $110.77

Tillotson HL-388 Carb

Part# 'HL-388B'
Tillotson Carb
Venturi = 0.790"
Throttle Bore = 1.000"
Fuel = Gas
Application = F200
Sell $117.00

Tillotson HL-388 Carb

Part# 'HL-388B-A'
Tillotson Carb
Venturi = 0.880"
Throttle Bore = 1.000"
Fuel = Alky
Application = F200
Sell $143.00

Tillotson HL-348F Carb

Part# 'HL-348F'
Tillotson Carb
Venturi = 0.875"
Throttle Bore = 1.000"
Fuel = Alky
Application = Open
List $118.64
Sell $106.78
out of stock

Tillotson HL-360A Carb

Part# 'HL-360A'
Tillotson Carb
Venturi = 0.945"
Throttle Bore = 1.060"
Fuel = Gas
Application = 2 Cycle
List $102.08
Sell $91.87

Tillotson HL-334AB Carb

Part# 'HL-334AB'
Tillotson Carb
Venturi = 0.790"
Throttle Bore = 1.005"
Fuel = Gas
IAME Leopard OEM
List $223.10
Sell $211.95

ACCESSORIES

Linkage Kits

Manifolds

Rebuild Kits

Velocity Stacks

Carb Tools

INDIVIDUAL PARTS PAGES

Parts Diagram

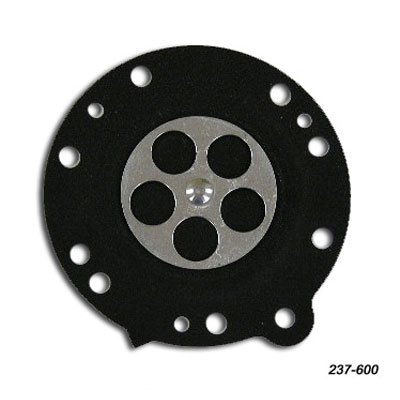

Diaphragms

Flange Gaskets

Fuel Strainers

Idle Speed Screws

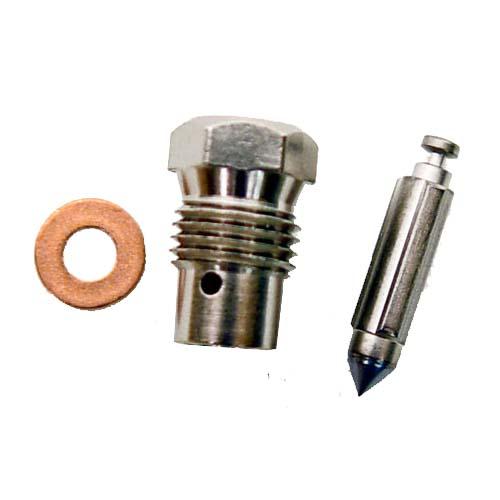

Inlet Needle & Seats

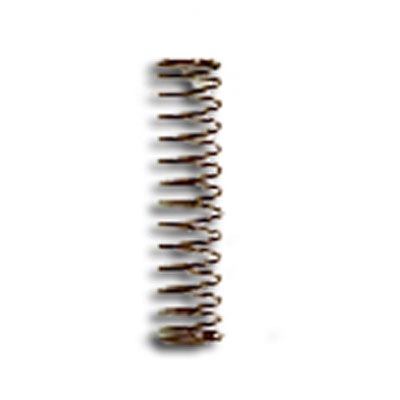

Inlet Springs

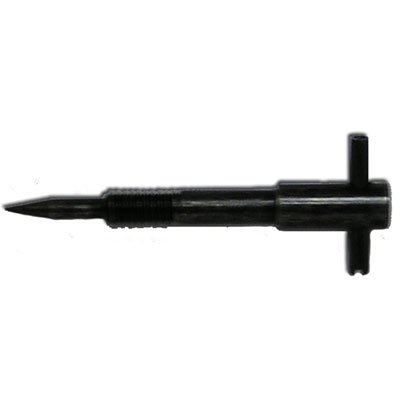

Mixture Needles

Shutters

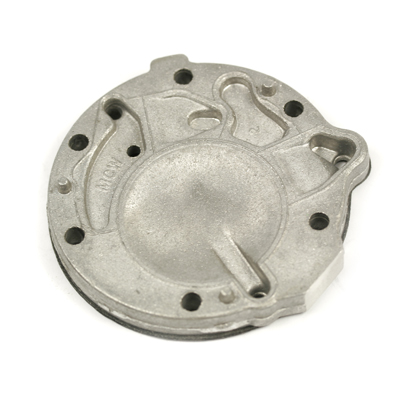

Stack Parts

Throttle Shaft & Parts

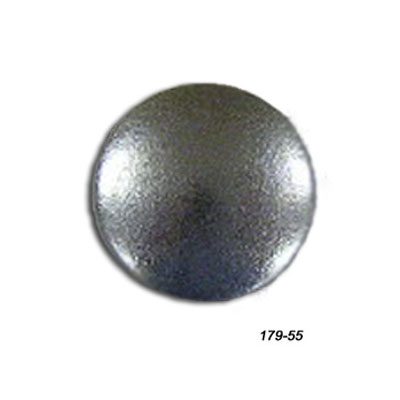

Welch Plugs

Rebuild Kits & Gasket Sets

Rebuild Kit - Double Stack

Part# 'RK-104HL'
HL Rebuild Kit
Double Stack
Sell $16.17

Rebuild Kit - Single Stack

Part# 'RK-117HL'
HL Rebuild Kit
Single Stack
Fits HL-334/360A etc.
Sell $18.99

Rebuild Kit - Single Stack

Part# 'RK-114HL'
HL Rebuild Kit
Single Stack
Fits HL-166 etc.
Sell $16.07

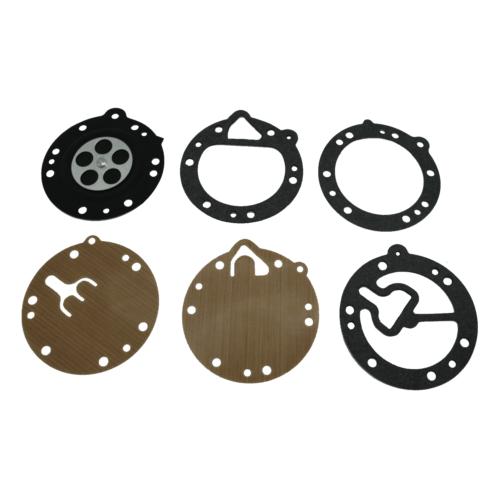

Gasket Set - Double Stack

Part# 'DG-4HL/HR'
Gasket Set
Double Stack
Sell $8.11

Gasket Set - Single Stack

Part# 'DG-1HL'
Gasket Set
Single Stack
Fits HL-334/360A etc.
Sell $7.20

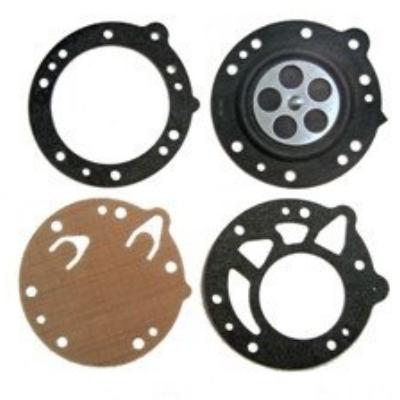

Gasket Set - Single Stack

Part# 'DG-5HL'
Gasket Set
Single Stack
Fits HL-166 etc.
Sell $7.56

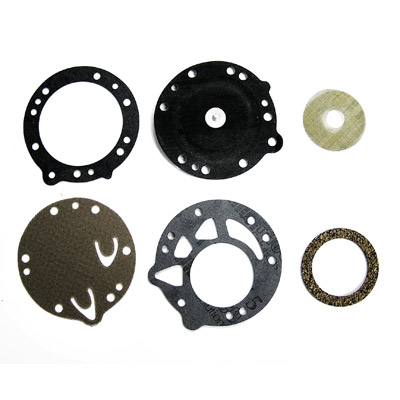

Gasket Kit - Replaces DG1-HL

Part# 'P9-DG'
Gasket Set
Single Stack
Replaces #DG-1HL
Sell $7.02

Rebuild Kit - Replaces RK-113HL

Part# 'P11-RK'
Rebuild Kit
Double Stack
Replaces #RK-113HL
Sell $15.25

Flange Gaskets

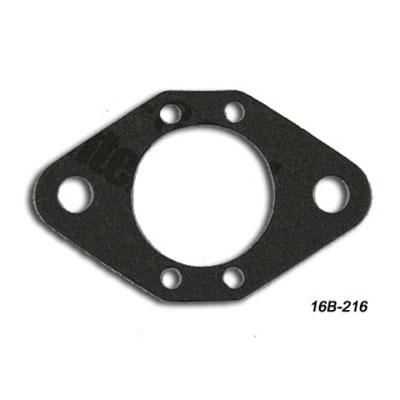

#12 Flange Gasket - HL

Part# '16B-216'
#12 Flange Gasket
Fits HL Carbs
Sell $0.64

#12 Flange Gasket - HL

Part# 'EC-198P'
#12 Flange Gasket
Fits HL Carbs
Sell $0.60

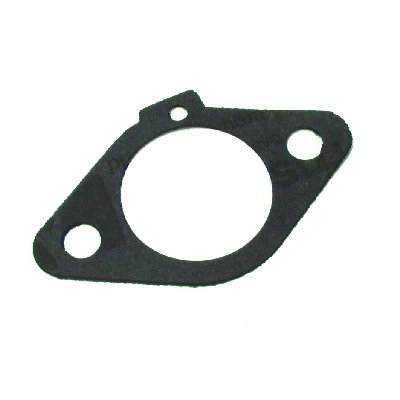

#12 Flange Gasket - HR

Part# '16B-241'
#12 Flange Gasket
Fits HR Carbs
Sell $0.64

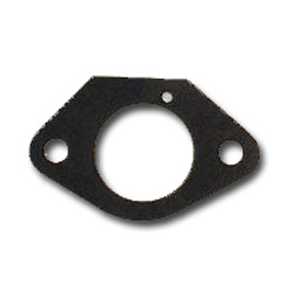

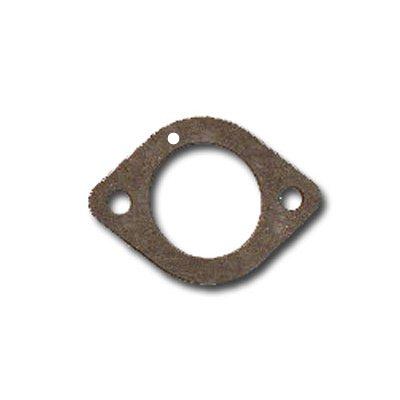

#12 Flange Gasket - HL

Part# 'EC-206NP'
#12 Flange Gasket
Fits HL Carbs
1.125" Hole
Sell $0.60

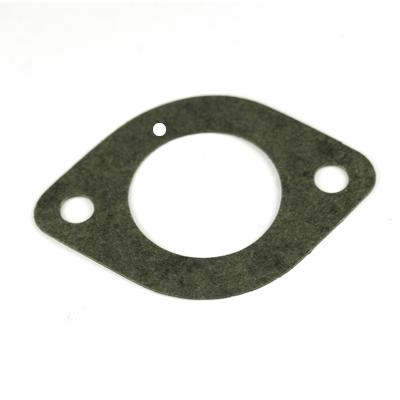

#12 Flange Gasket - HL

Part# 'EC-199NP'
#12 Flange Gasket
Fits HL-360A
1.060" Hole
Sell $0.60

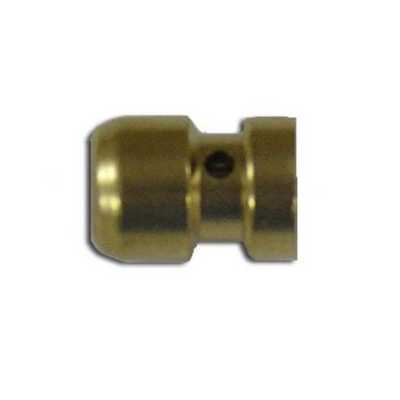

#31A Nozzle Check Valve

Part# '363-517'
#31A Nozzle Check Valve
Fits HL
OEM Tillotson
Sell $7.53
